Additive Wavetable Generator v1.2.4

Advanced Hybrid Architecture

AWG is a dedicated desktop wavetable studio built around a high-resolution dual-engine architecture. It allows you to design complex timbral evolutions by combining additive synthesis, WAV import, and powerful modular effect chains across a 256-frame timeline.

Signal Flow

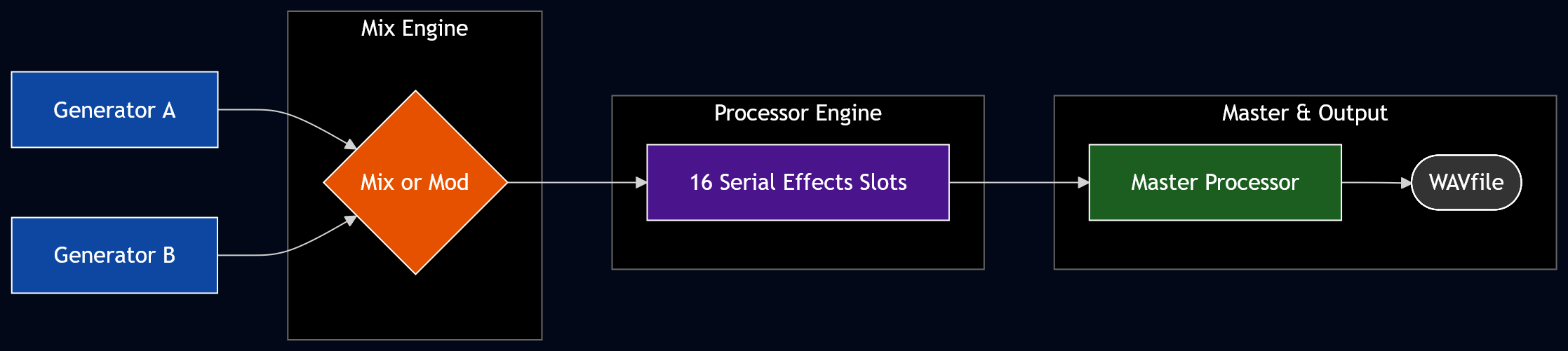

The following diagram illustrates the internal routing of AWG. Signals move from the dual-generator stage through the Mix Engine, followed by a 16-slot serial effect chain and a final master processing stage.

// Schematic representation of the AWG processing pipeline

Generator Engines

AWG features two independent generators (Gen A & B) that can be combined and modulated via the central Mix Engine.

DATA.01

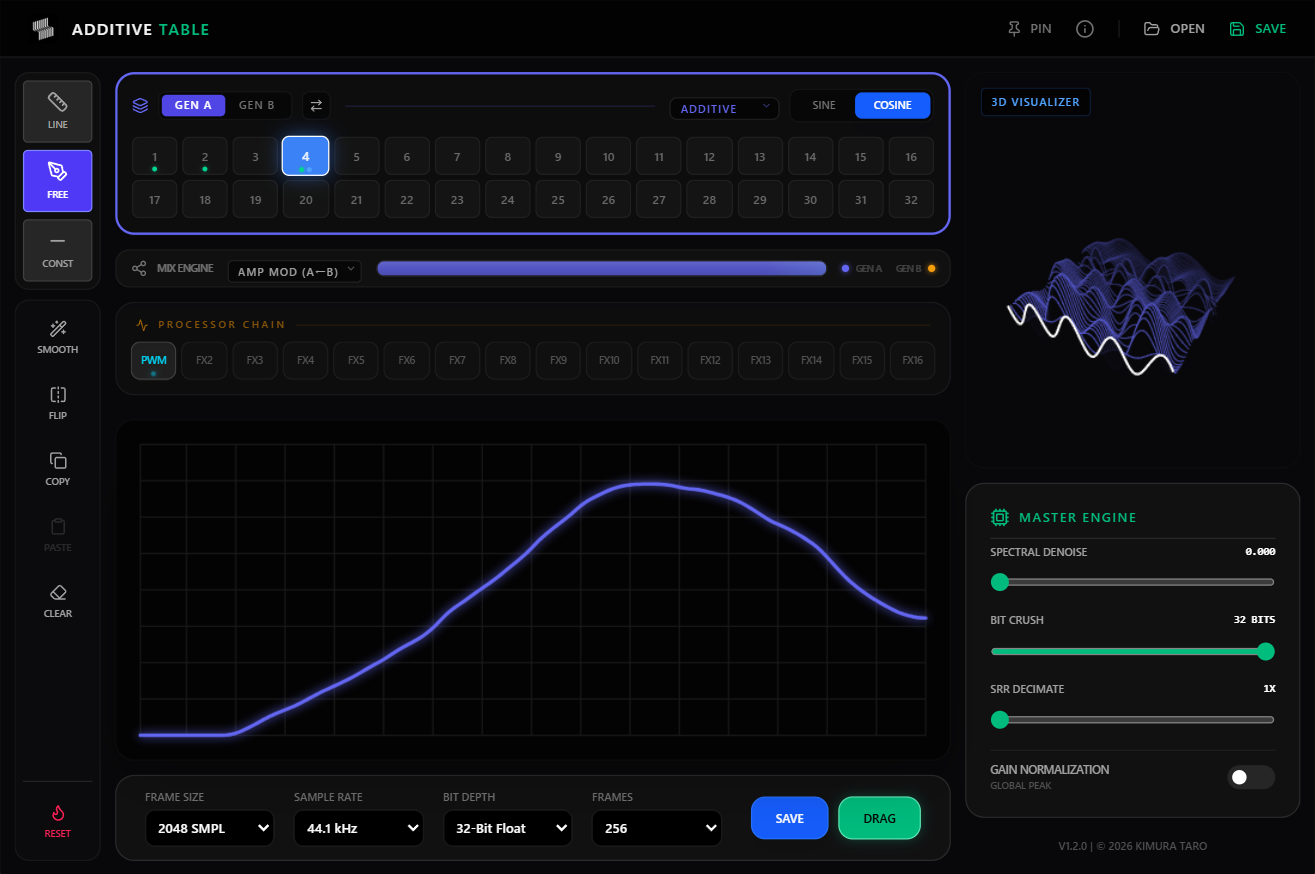

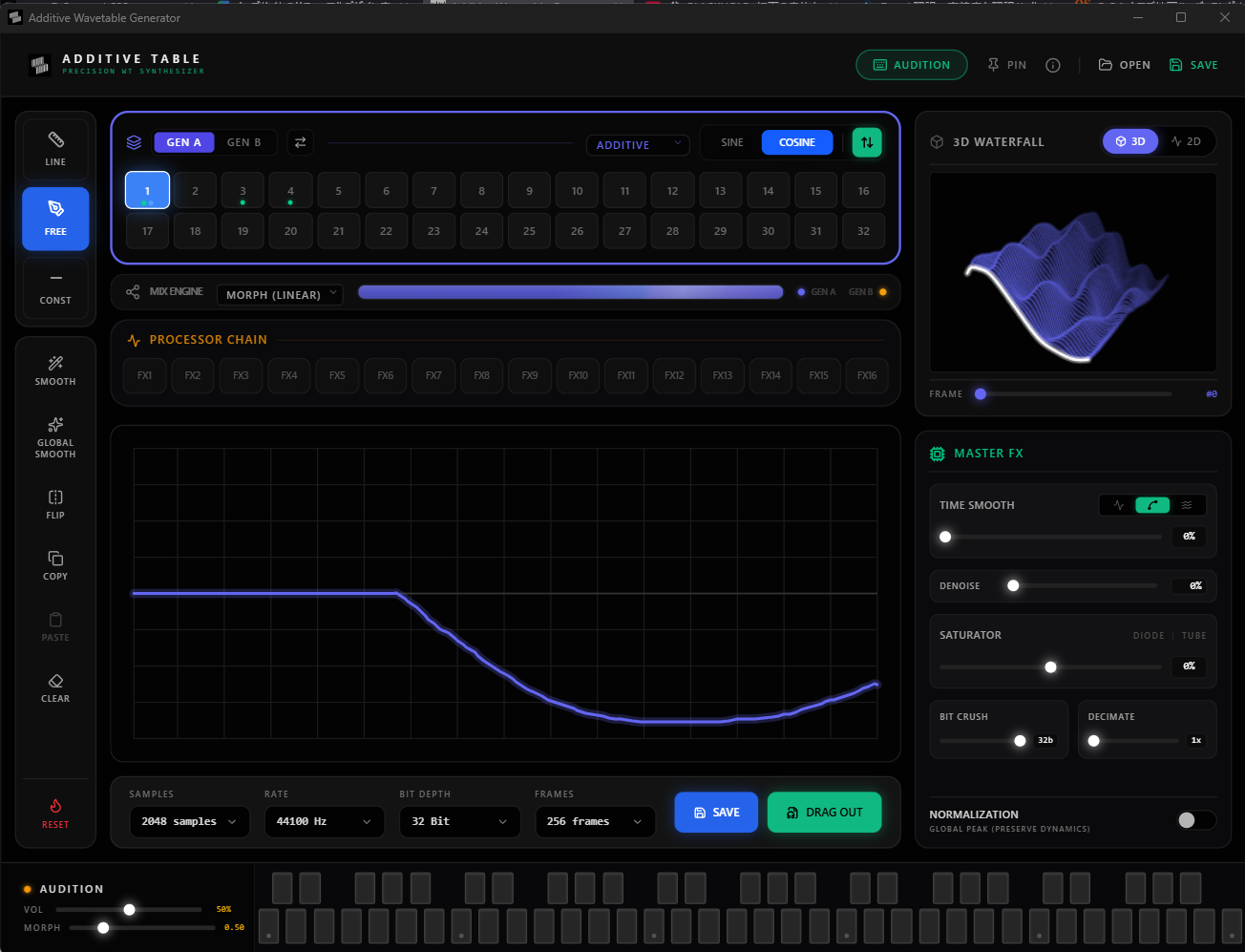

Additive Engine

Direct control over 32 harmonic partials. Adjust sine and cosine components independently for perfect phase alignment and artifact-free waveform generation.

DATA.02

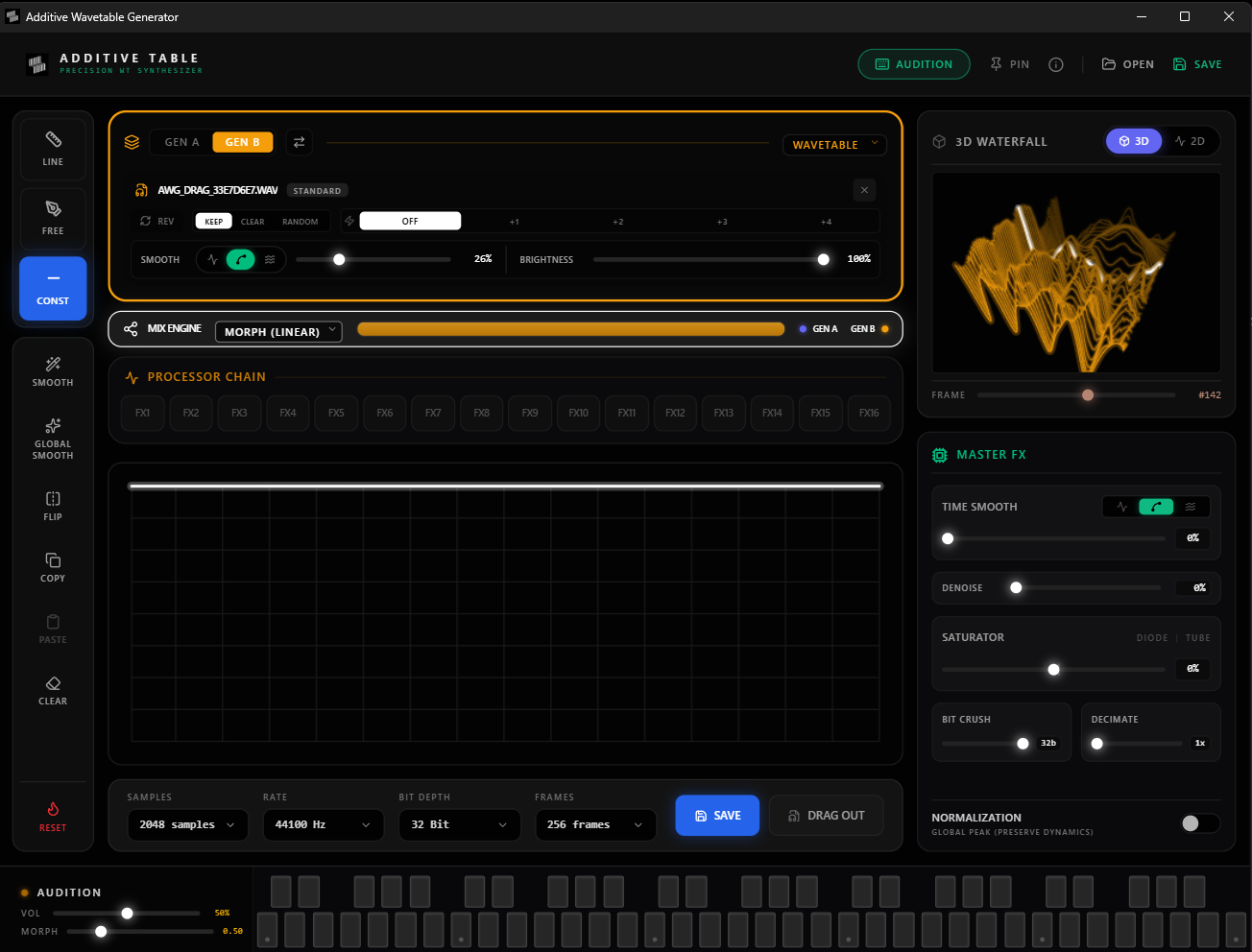

Wavetable Engine

Import any existing WAV files. High-precision pitch detection and interpolation seamlessly reconstruct single-pitched samples into smooth 256-frame wavetables.

START

END_OF_LINE

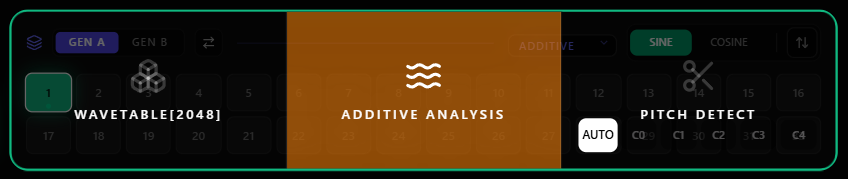

Flexible WAV Import Modes

AWG provides two distinct methods for importing external audio into the Wavetable Engine:

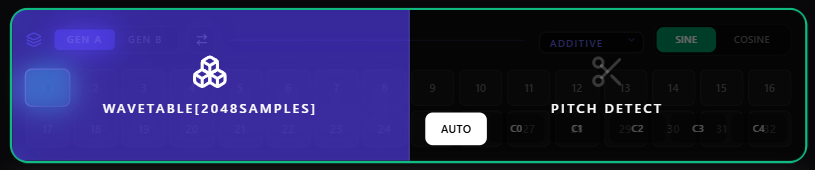

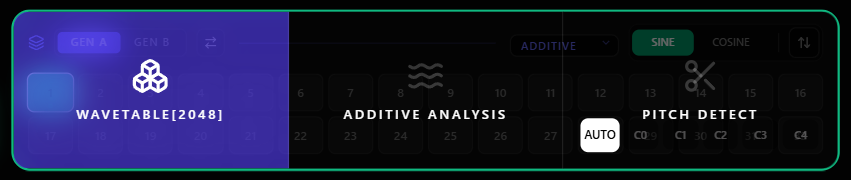

01. Standard Wavetable Import
Optimized for industry-standard wavetables. It supports importing files with a fixed frame size of up to 2048 samples per cycle, preserving the integrity of the original source.

// Standard import optimized for 2048 samples per frame

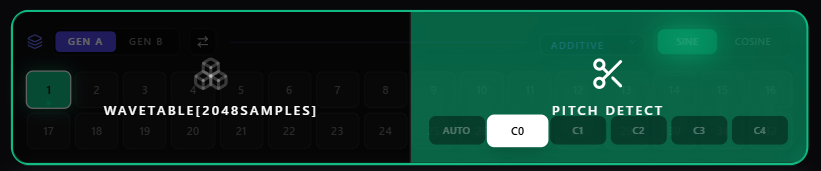

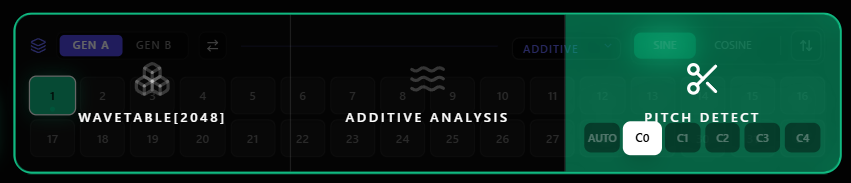

02. Pitch Detection & Resynthesis
Transform any single-pitched sample into a playable wavetable. AWG analyzes the incoming audio, detects the fundamental frequency, and resynthesizes the data into a perfectly aligned 256-frame wavetable.

// Automatic pitch analysis and period alignment for sample resynthesis

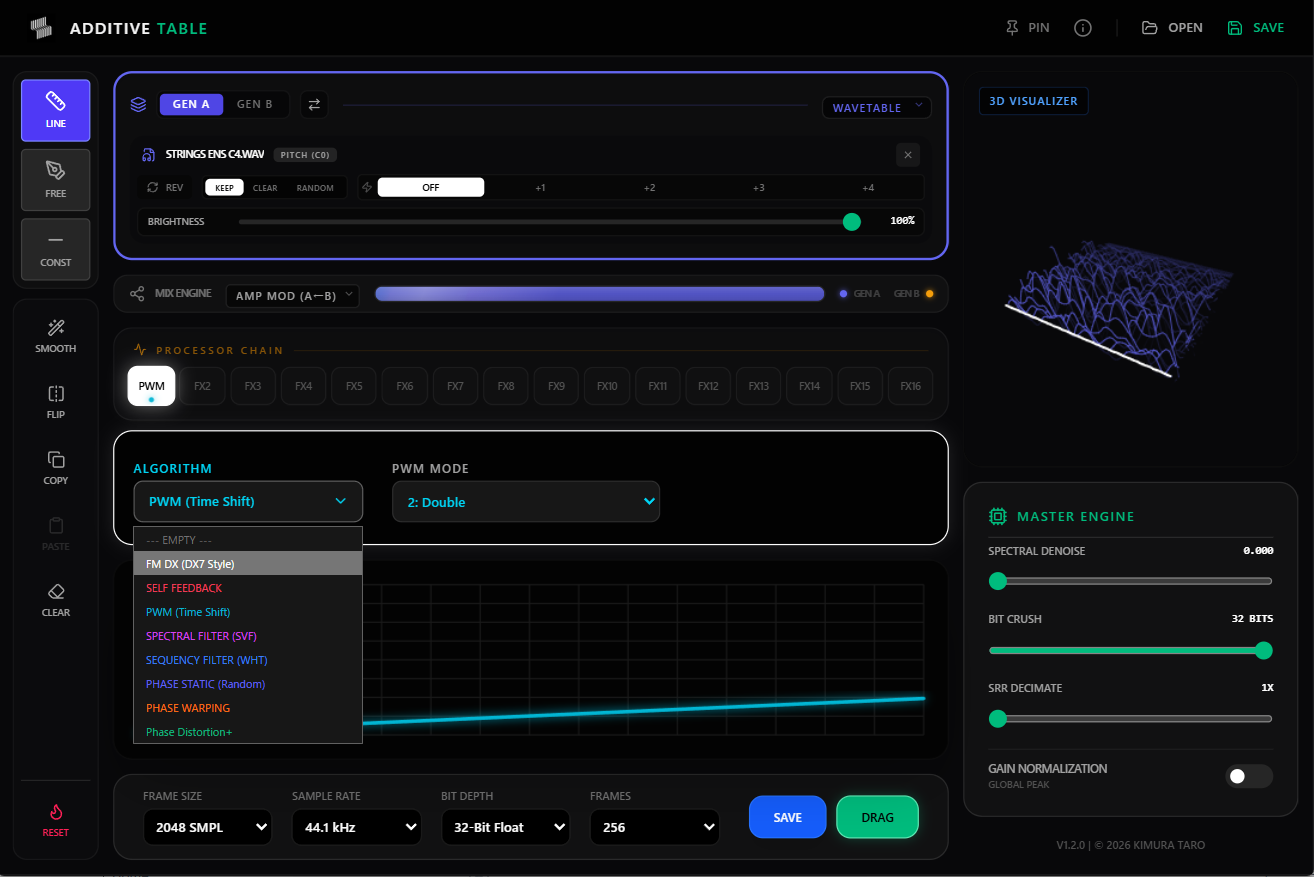

Effect Algorithms

The combined signal is processed through a 16-slot serial effect chain, allowing for deep spectral and temporal transformations.

DATA.01

Phase Distortion+

6 CZ-style PD modes combined with 4 advanced phase shapers: Sync, Ripple, Fold, and Skew.

DATA.02

FM / PM

Analog frequency modulation and digital phase modulation in a single processorwith feedback and switchable DX-style rendering.

DATA.03

Self-Feedback

Chaos-based feedback loop utilizing a recursive 1-pole IIR damping filter for organic, evolving timbres.

DATA.04

PWM (Phase-Consistent)

A unique PWM implementation that works on any arbitrary waveform via phase interference. Includes Standard, Double, Dual, and Super modes.

DATA.05

Spectral SVF

A zero-phase multi-mode State Variable Filter (LP/BP/HP/Notch) operating in the frequency domain via FFT.

DATA.06

Sequency Filter

Multi-mode filtering based on the Walsh-Hadamard Transform (WHT). Creates distinct digital resonant characteristics.

DATA.07

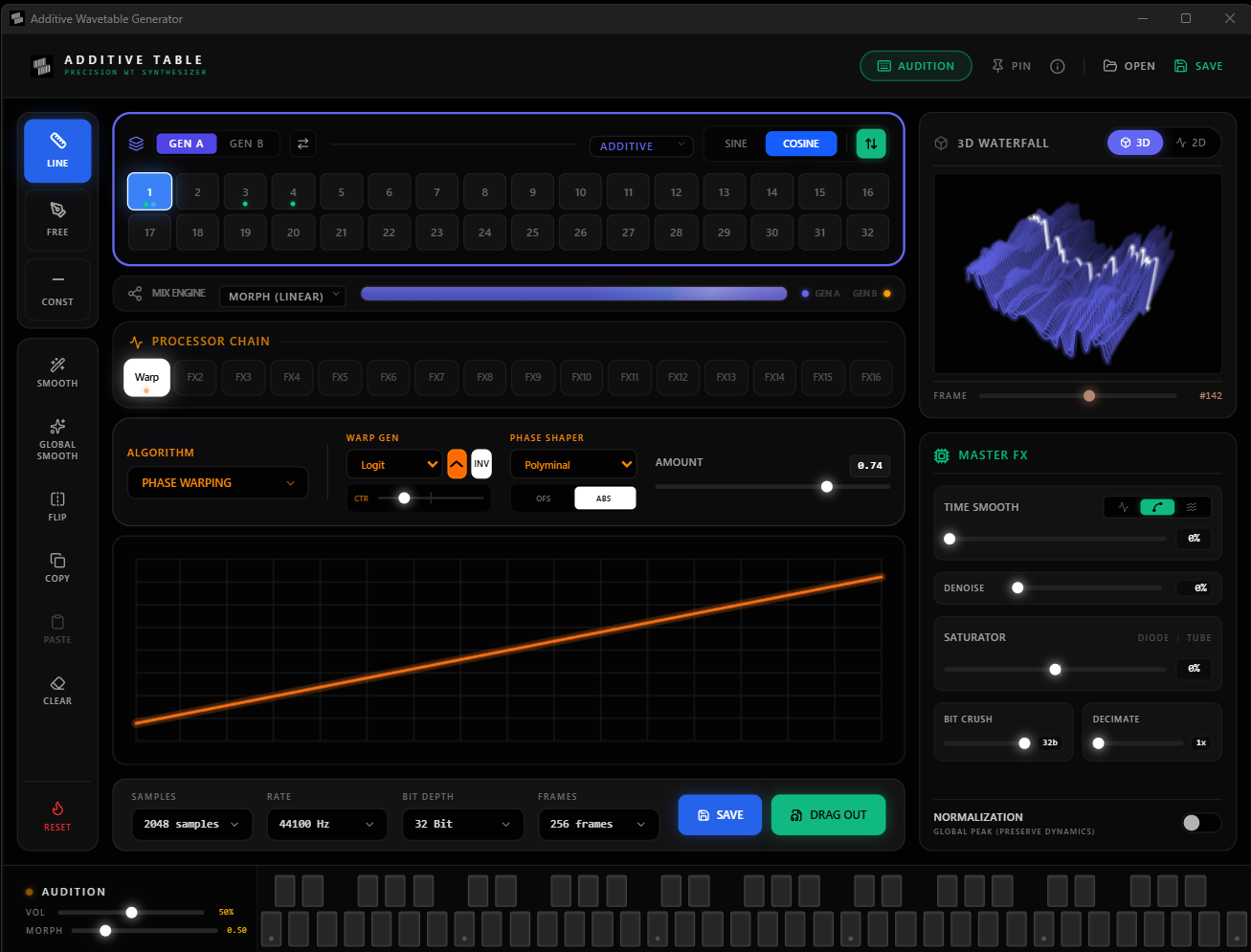

Phase Warping

Nonlinear phase re-mapping using Logit, Tanh, and Power-S curves.

DATA.08

Phase Static

Reproducible phase randomization with 1/f beta-weighted noise distribution for creating complex un-pitched textures.

START

END_OF_LINE

Technical Specifications

Category	Specification
Generator	Dual (Gen A & B) — Additive (32 harmonics) + Wavetable (WAV import)

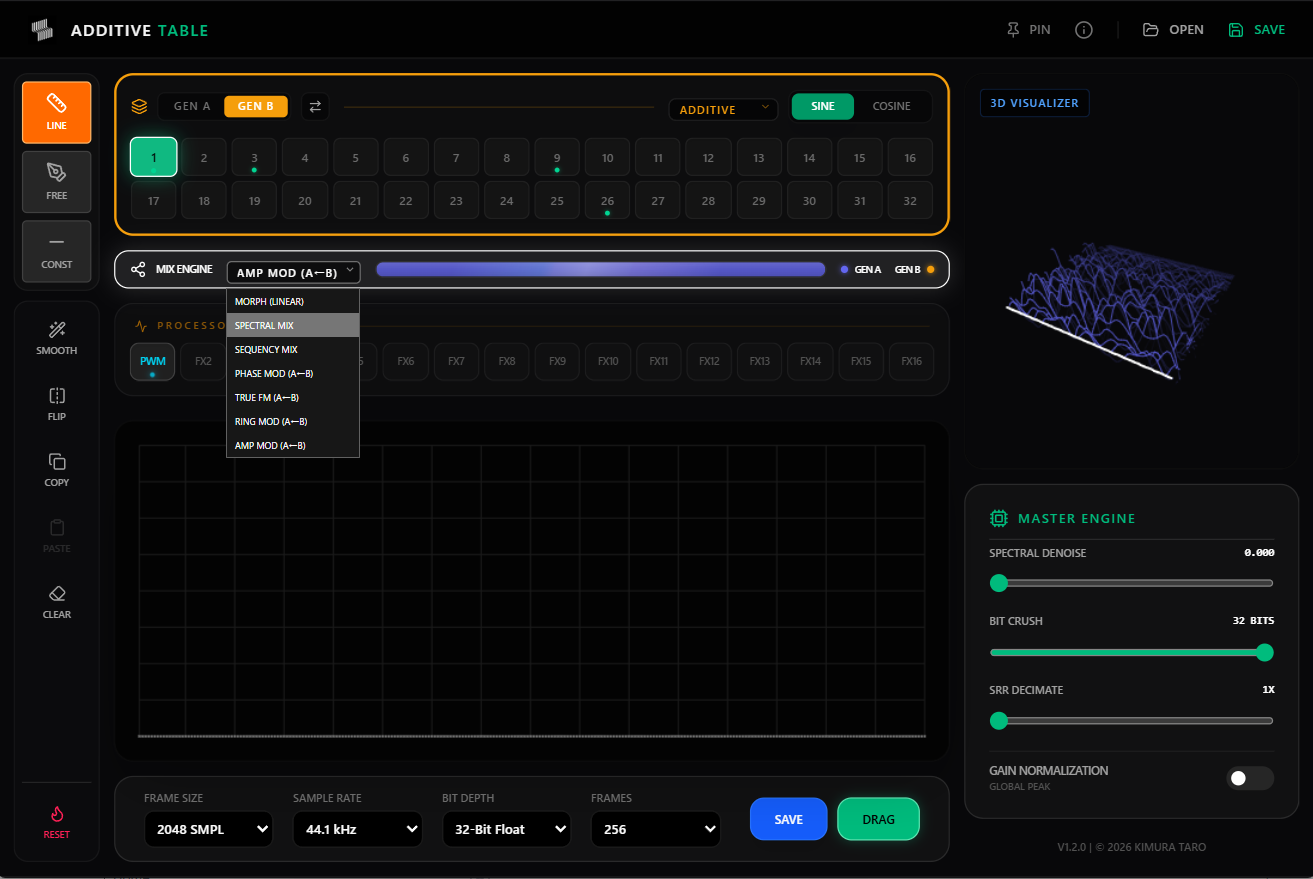

Mix Engine	Morph, Spectral Mix, Sequency Mix, Phase Mod, True FM, Ring Mod/AM
Effect Chain	16 serial slots
Mastering	Spectral Denoise, Bit Crush, Sample Rate Reduction
Audition	The final wave table output can be played back directly within the app as a 256-frame ping-pong morph loop with all effects applied.
Export Formats	8/16-bit PCM, 32-bit Float WAV, .awg project files
Frame Sizes	128 / 256 / 512 / 1024 / 2048 samples
Frame Counts	32 / 64 / 128 / 256 frames

---

System Requirements

• Windows: Windows 11 (64-bit)
• macOS: macOS 12 or newer, Universal Binary (Intel & Apple Silicon)
• Linux Ubuntu 22.04 LTS / Debian 12 / Fedora 36 (or any modern distribution released after 2022 with glibc 2.35 or newer).

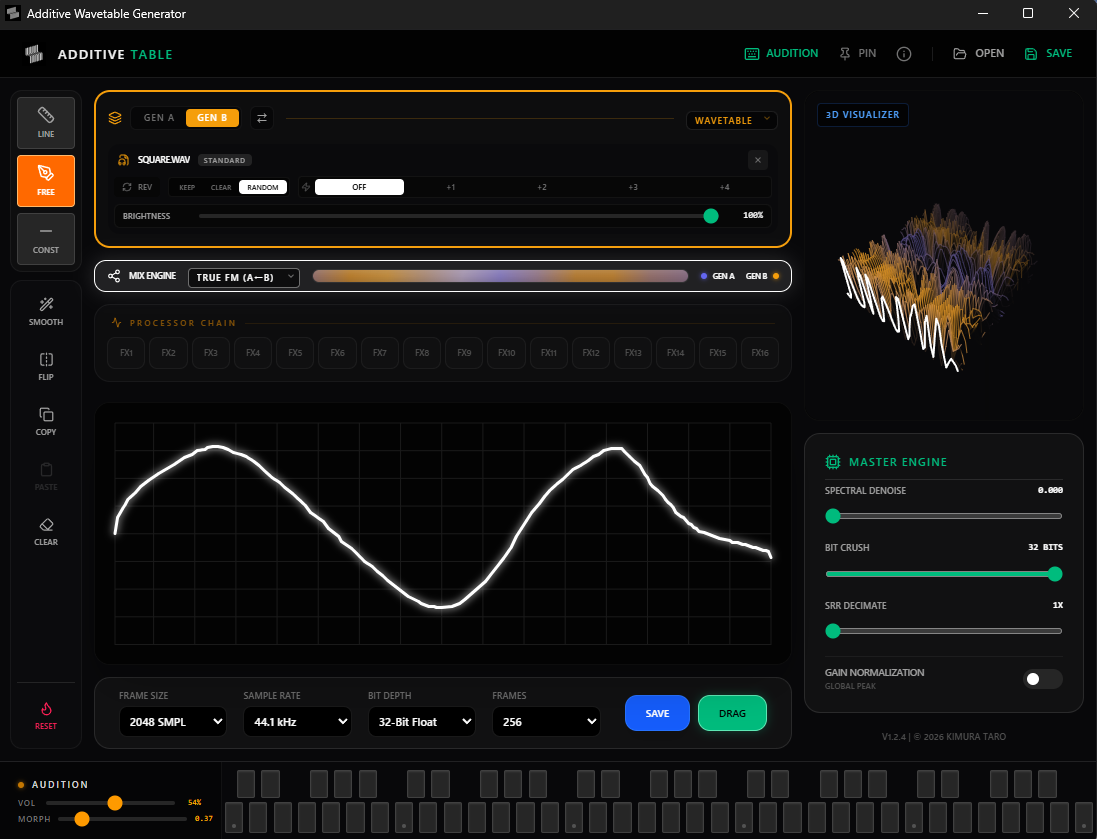

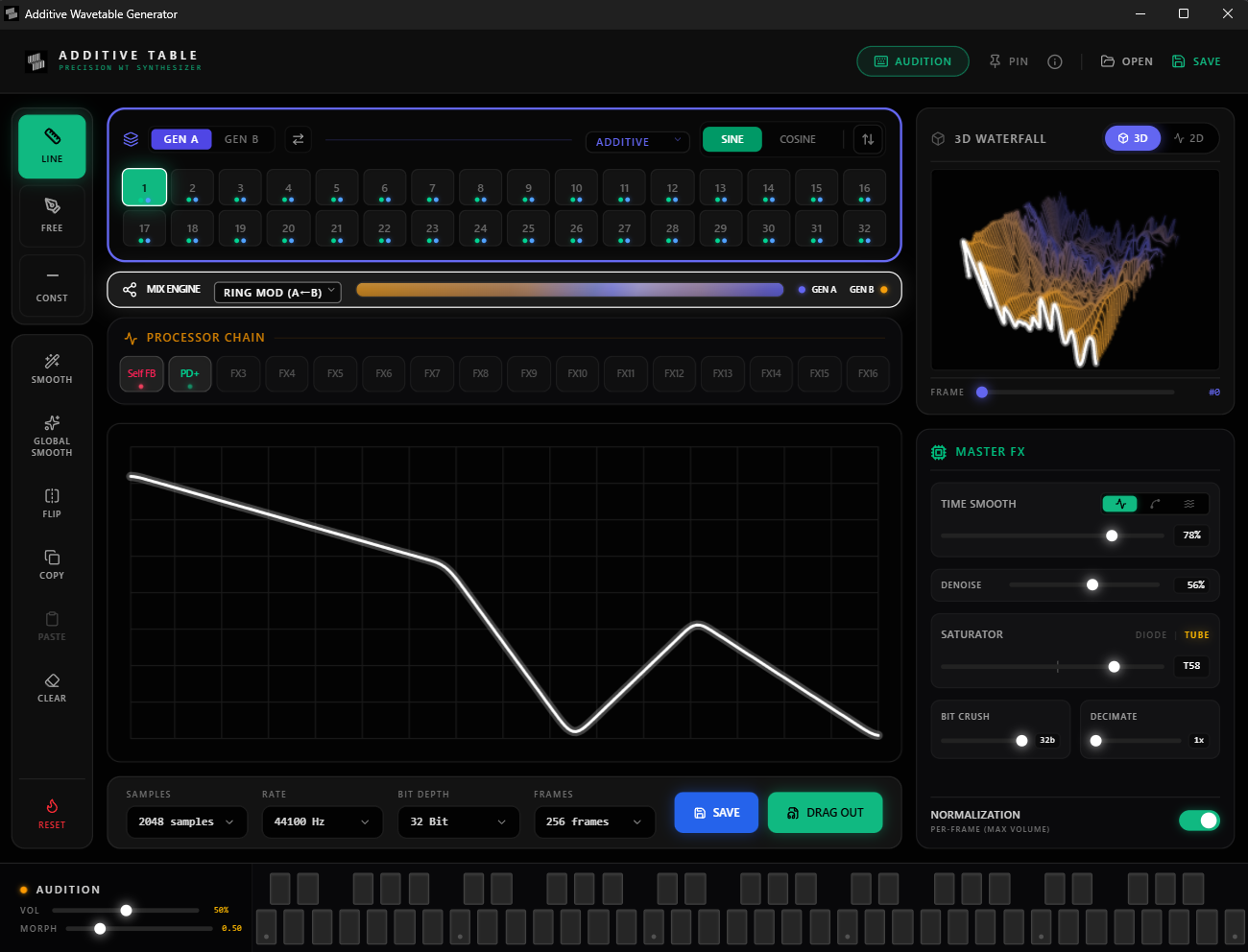

Interface Screenshots

AWG features a high-contrast, clinical interface designed for precision. Click on any image below to view the module details in high resolution.

Align your partials. Chain your effects. Define your sound.
